Model code — A10VO45DFR1/52R-PSC64N00
Decoded against the official ordering code of this series (series 52 uses 12 positions, in the order of positions 02–13 of series 31). This unit reads as follows:
| Field | Value | Meaning |
|---|---|---|
| Axial piston unit | A10VO | A10VO swashplate variable pump (open circuit) |
| Size (NG) | 45 | nominal size NG45 |
| Control | DFR1 | pressure and flow control (X-T closed) |
| Series | 52 | series 52 |
| Rotation | R | clockwise, viewed from the shaft end |
| Seals | P | NBR body with FKM shaft seal (older / US version) |
| Drive shaft | S | spline, ISO 3019-1 / ANSI B92.1a |
| Mounting flange | C | SAE 2-hole (standard) |
| Work ports | 64 | flange seat (NG10 / 28 / 45) |
| Through drive | N00 | no through drive |
| Solenoid connector | — | omitted — none |
Product overview

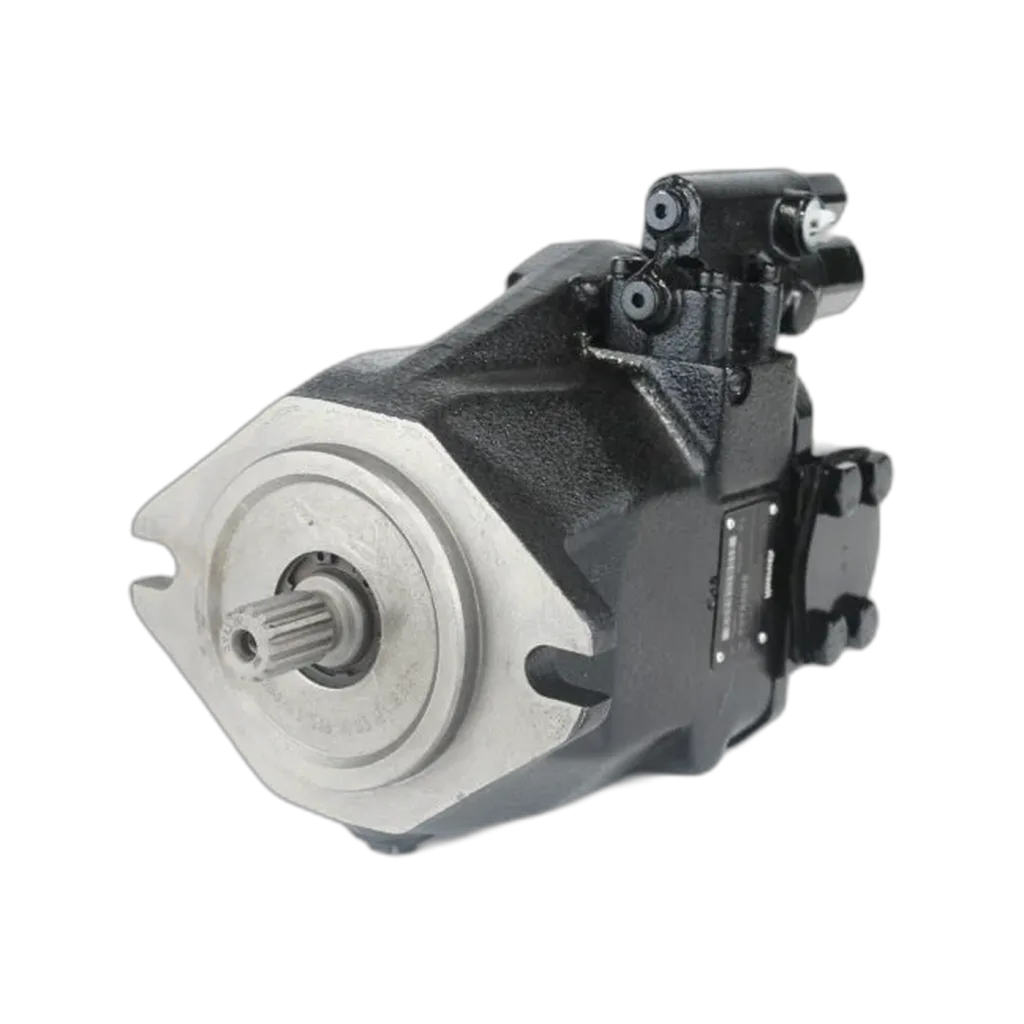

New aftermarket A10VO axial piston variable pump, Series 52, swashplate design for open circuit. Complete model code: A10VO45DFR1/52R-PSC64N00. Size NG45, nominal displacement 45 cm³/rev. Nominal pressure 250 bar, maximum pressure 315 bar. Direction of rotation R (clockwise, viewed on the drive shaft). Quality checked before shipping. Contact us to confirm exact configuration and availability before ordering.
Control: DFR1 pressure and flow controller (load-sensing, with flushing)
In addition to the pressure controller function, an adjustable orifice (e.g. directional valve) is used to adjust the differential pressure upstream and downstream of the orifice. This is used to control the pump flow. The pump flow is equal to the actual hydraulic fluid quantity required by the consumer. With all controller combinations, the Vg reduction has priority. The DFR1 version has no unloading from X to the reservoir; the LS must thus be unloaded in the system. Because of the flushing function of the flow controller in the DFR1 control valve, sufficient unloading of the X-line must also be provided.
- Basic position in depressurized state: Vg max.
- Setting range up to 250 bar — standard is 250 bar.
- For pressure controller data, see the DR pressure controller.
Other control options on this size
This 45 cm³ Series 52 pump is also available with other controls:
- A10VSO45DR/52R-VSC62N00 — DR pressure controller
- A10VSO45DRG/52R-PSC61N00 — DRG pressure controller, remotely controlled
- A10VSO45DFR/52R-VSC12N00 — DFR pressure and flow controller (load-sensing)
- A10VSO45DRSC/52R-PSC12N00-S — DRSC pressure and flow controller, without flushing
Ordering
Send us the complete model code from the nameplate of your existing pump, or the machine model — we will confirm the correct size, control and configuration before you order.
Series overview
All models in this series: A10VO Series 52. Parent range: A10VO Piston Pump.
Not sure about the fit? Contact us with the full nameplate code and we will confirm before you order.
