Product overview

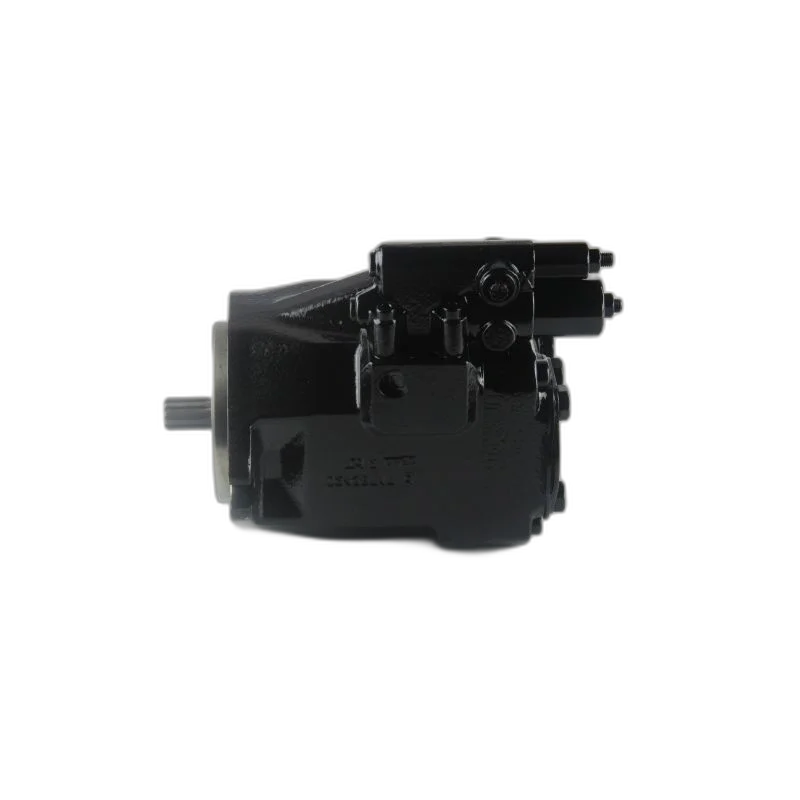

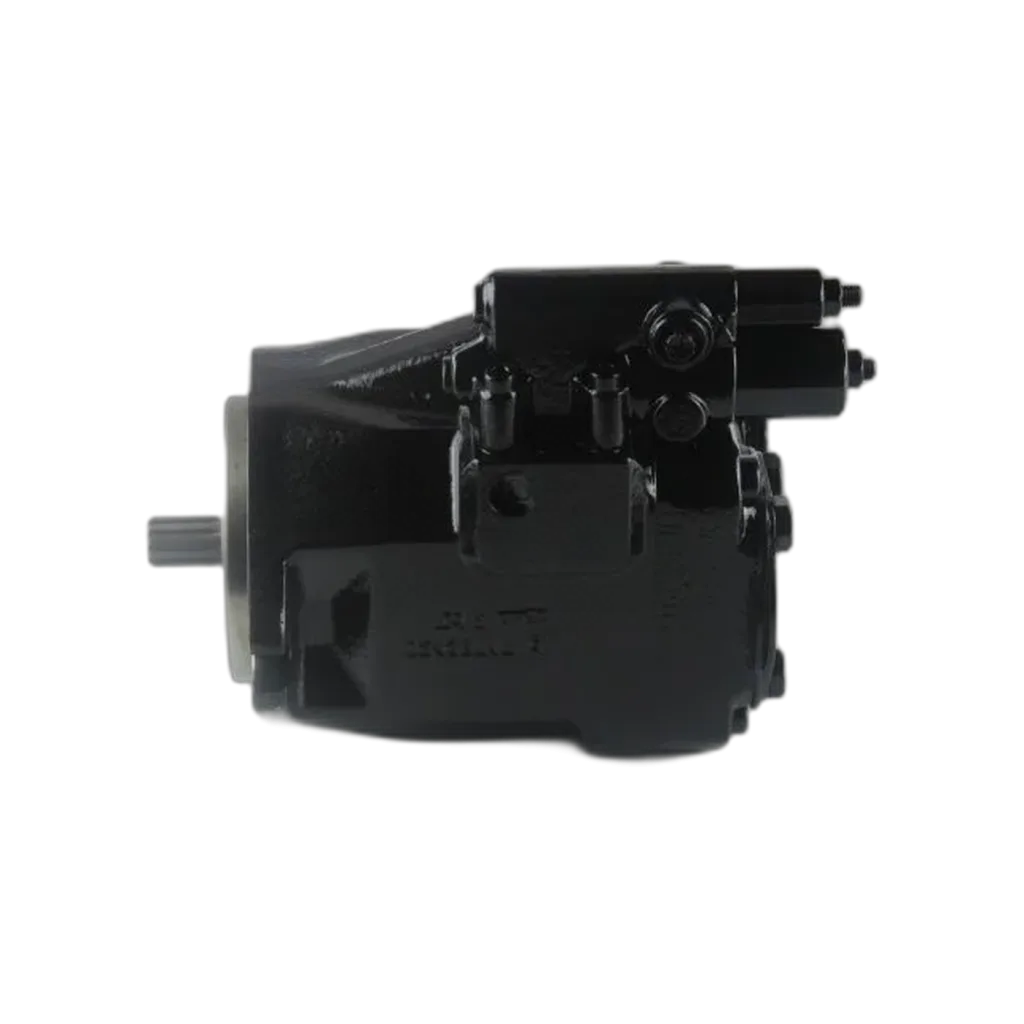

New aftermarket A10VSO axial piston variable pump, Series 52, swashplate design for open circuit. Complete model code: A10VSO10DFR/52R-PKC64N00. Size NG10, nominal displacement 10.5 cm³/rev. Nominal pressure 250 bar, maximum pressure 315 bar. Direction of rotation R (clockwise, viewed on the drive shaft). Quality checked before shipping. Contact us to confirm exact configuration and availability before ordering.
Control: DFR pressure and flow controller (load-sensing)
In addition to the pressure controller function, an adjustable orifice (e.g. directional valve) is used to adjust the differential pressure upstream and downstream of the orifice. This is used to control the pump flow. The pump flow is equal to the actual hydraulic fluid quantity required by the consumer. With all controller combinations, the Vg reduction has priority.
- Basic position in depressurized state: Vg max.
- Setting range up to 250 bar — standard is 250 bar.
- For pressure controller data, see the DR pressure controller.
Other control options on this size
This 10.5 cm³ Series 52 pump is also available with other controls:
- A10VSO10DR/52R-PSC64N00 — DR pressure controller
- A10VSO10DRG/52R-PSC64N00 — DRG pressure controller, remotely controlled
- A10VSO10DFR1/52R-PSC64N00 — DFR1 pressure and flow controller (load-sensing, with flushing)
- A10VSO10ED71/52R-PSC64N00T — ED71 electrohydraulic pressure control, negative (12 V)
Ordering
Send us the complete model code from the nameplate of your existing pump, or the machine model — we will confirm the correct size, control and configuration before you order.
