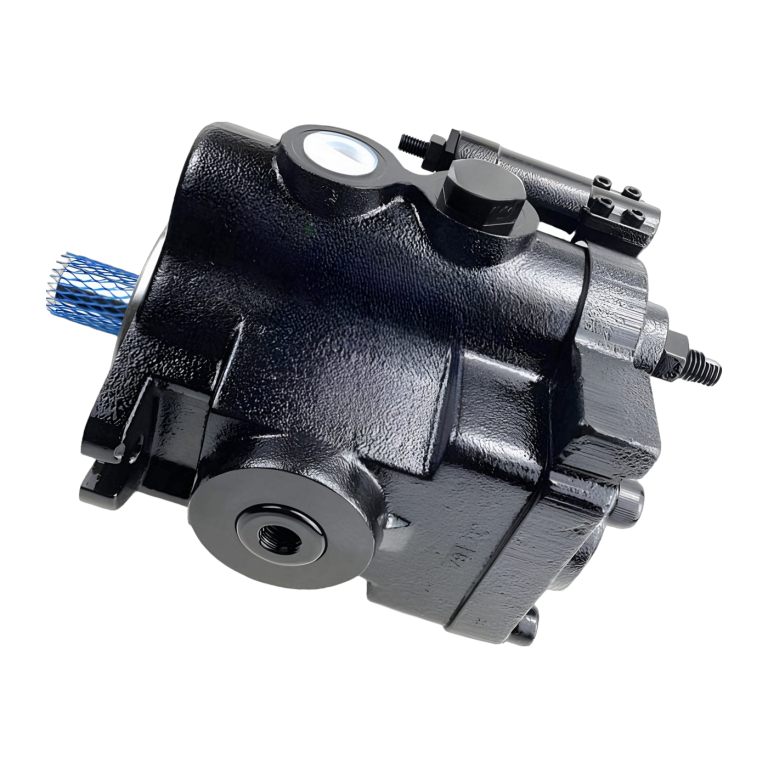

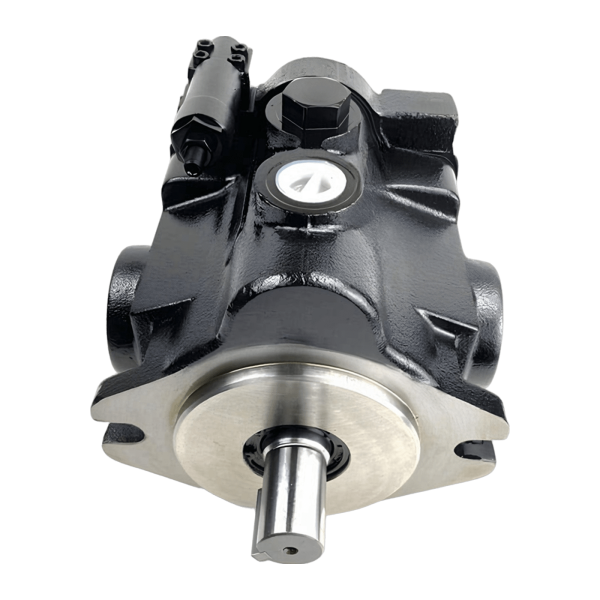

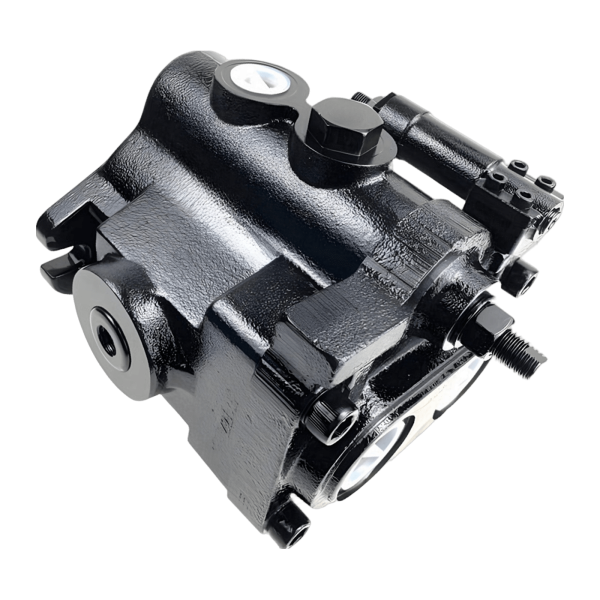

Aftermarket Replacement PV · PVT Series Piston Pumps
This line covers the flow-class (gpm) coded PV / PVT series swashplate axial piston variable pumps: named by flow class (PV6–PV29, PVT6–PVT64), 14.4–130 cm³/r, 240/310 bar continuous/intermittent (PV29 207/280; PVT38/47/64 280/300). PVT models have SAE Code 61 flange ports, PV models threaded ports. Note: this system is not interchangeable with the current cm³-based PV series (350/420 bar, MMC/MR/MF type control codes) — send us the full nameplate code and we will confirm which system you have.
Technical data — PV · PVT series
| Model class | PV6 / PVT6 | PV10 / PVT10 | PV15 / PVT15 | PV20 / PVT20 | PV29 / PVT29 | PVT38 | PVT47 | PVT64 |
|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/r) | 14.4 | 20.6 | 34.2 | 42.9 | 61.9 | 80.0 | 100.0 | 130.0 |
| Continuous / intermittent pressure (bar) | 240 / 310 | 240 / 310 | 240 / 310 | 240 / 310 | 207 / 280 | 280 / 300 | 280 / 300 | 280 / 300 |
| Max speed (rpm) | 3000 | 3000 | 2500 | 2400 | 2400 | 1800 | 1800 | 1800 |
| Mounting flange | SAE 82-2 (A) | SAE 101-2 (B) | SAE 101-2 (B) | SAE 127-2 (C) | SAE 127-2 (C) | SAE 127-4 (C) | SAE 127-4 (C) | SAE 152-4 (D) |
| Weight (kg, PV / PVT) | 11 / 14 | 16 / 20 | 20 / 25 | 26 / 32 | 33 / 42 | 50 | 71 | 95 |
| Controls | C pressure compensator · F ventable pressure compensator · L load sensing · J / K torque limiter (low / high) | |||||||
| Ports | Threaded (SAE / BSPP) or SAE Code 61 flange (PVT models) | |||||||
| Fluid & cleanliness | HLP, ISO 4406 20/18/15 | |||||||
Available controls
- C — pressure compensator (constant pressure)
- F — ventable pressure compensator
- L — load sensing
- J / K — torque limiter (low / high range)
Typical applications
The PV / PVT series serves 240/310 bar class industrial and mobile circuits — injection moulding machines, presses, machine tools, test rigs and mobile main pumps. The code has 8 positions: series/flow class, shaft, rotation, seals, design series, control, port type and option — always select by the full nameplate code.
Not sure which code system your pump uses? Send us the full nameplate code and we will confirm before you order. Contact us
New aftermarket PV · PVT series axial piston variable pumps named by flow class (gpm code) — PV6 to PV29 and PVT6 to PVT64, 14.4 to 130 cm³/r, 240/310 bar continuous/intermittent (PV29 207/280; PVT38/47/64 280/300). Controls C, F, L, J and K; threaded ports or SAE Code 61 flange ports. This code system is not interchangeable with the cm³-based PV series — send us the nameplate code and we will confirm which system you have.
