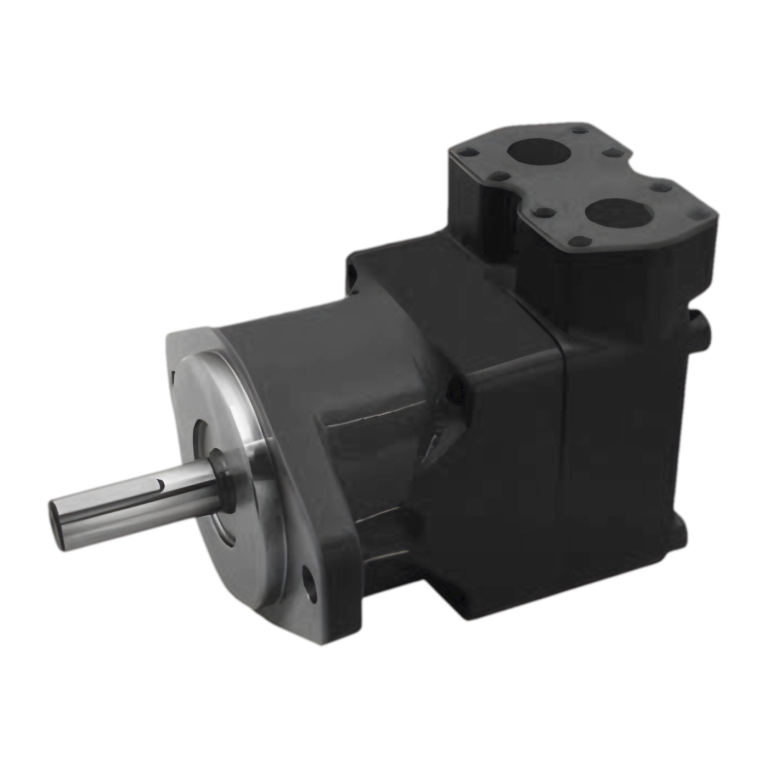

Fixed-displacement M3 series vane motors — M3B (external drain) and M3B1 (internal drain, drain port plugged) versions, bi-directional (rotation code N), for fan, cooling and mobile drives. Five stator codes cover 9.2 to 37.1 cm³/rev; maximum pressure is 210 bar and the low-load (80 bar) speed limit is 4000 r/min. SAE A / ISO flange, keyed or splined shaft, with 3/4" BSPP or 3/4" SAE 4-bolt ports. All units are new aftermarket replacements, quality checked before shipping; send us the complete nameplate code and we confirm the fit before ordering.

Technical data — M3 Vane Motors

Drain versionM3BM3B1
Displacement codes (cm³/rev, 5 codes)9.2 / 12.3 / 18.5 / 27.8 / 37.1 (009 / 012 / 018 / 027 / 036)
Drain versionExternal drain (low-pressure port ≤ 35 bar when A / B alternate)Internal drain, drain port plugged (low-pressure port ≤ 1.5 bar)
Mounting flangeSAE A J744c / ISO 3019-1 (SAE A)
Max pressure (HF-0 / HF-2)210 bar (no rating given for other fluids)
Speed (low load / full pressure)4000 / 3000·3600 r/min (code 018; not given for 027 / 036)
Shaft codes (item 3)1 key (non-SAE) · 3 spline (SAE A) · 4 spline (SAE B)
Port form (item 8)01 A/B 3/4" SAE 4-bolt + 3/8" BSPP drain (revised datasheet) · 02 A/B 3/4" BSPP + 3/8" BSPP drain
Typical values (2000 r/min @ Δp 175 bar)19.7 / 46.6 / 77.4 / 102.0 N·m (009 / 018 / 027 / 036) · 4.3 / 10.0 / 16.3 / 21.1 kW
Mass / moment of inertia8.0 kg / 3.0 × 10⁻⁴ kgm²

Selection notes

M3B is a 9-item code: model (drain arrangement) - displacement - shaft - rotation N - porting 00 - design letter (B = Series "B") - seal class (1 / 5) - port form - modification. M3B is the external-drain version and M3B1 the internal-drain version (drain port plugged). On internal-drain units the low-pressure port must not exceed 1.5 bar; on external-drain units, whichever port is at low pressure must not exceed 35 bar when A and B alternate. Displacement codes 009 / 012 and port form 01 appear only in the revised edition of the datasheet.

Ordering

The model code must be complete — ring size, mounting, inlet and outlet, shaft and rotation together define the pump. Send the full nameplate code and we will confirm the replacement.
