Product overview

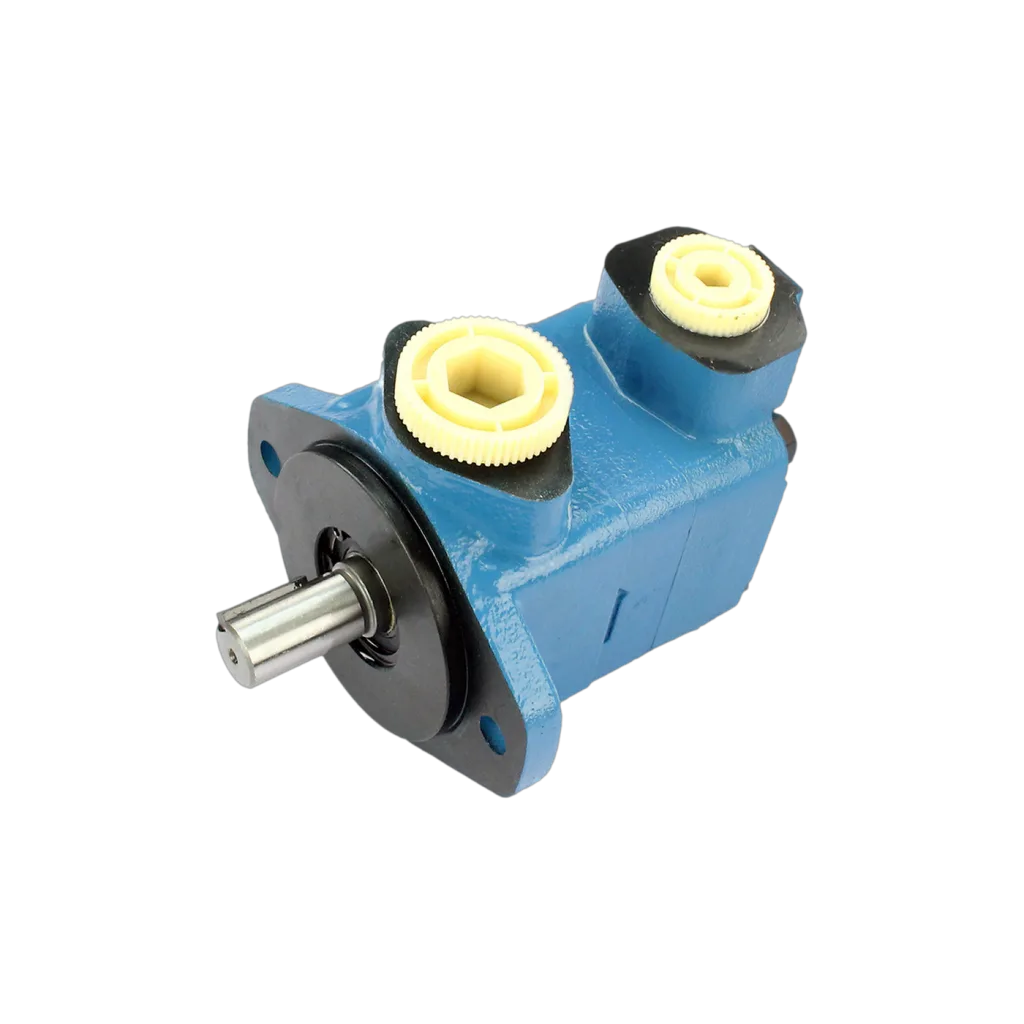

New aftermarket V10 6S6S 12C20 — a balanced vane pump of the V10 series, fixed displacement, for open hydraulic circuits. Ring size 6 (6 USgpm at 1200 r/min and 100 psi). Supplied as a new aftermarket replacement, quality checked before shipping.
Specifications
| Series | V10 balanced vane pump, single |
| Ring size | 6 (6 USgpm at 1200 r/min, 100 psi) |
| Mounting | SAE B (4.00 in pilot) |
| Inlet / outlet | 1.3125-12 UN O-ring boss / .750-16 UN O-ring boss |
| Shaft | spline |
| Circuit | fixed displacement, open circuit |
Model code — V10 6S6S 12C20
| Seals | — | omitted — standard nitrile seals for mineral oil |
| V (vane pump) | V | Vane pump, fixed displacement, open circuit |
| Series | V10 | V10 series industrial single pump |
| Mounting | 6 | SAE B (4.00 in pilot) |
| Inlet | S | 1.3125-12 UN O-ring boss |
| Ring size | 6 | Ring size 6 — rated 6 USgpm at 1200 r/min and 100 psi |
| Outlet | S | .750-16 UN O-ring boss |
| Shaft | 12 | spline |
| Outlet position | C | C |
| Design | 20 | 20 |
Other models in this series
Other V10 Vane Pump models we stock:
- F3 V10 1S6S 1D20 — ring size 6
- F3 V10 1S6S 1C20 — ring size 6
- V10 1P6P 11A20 — ring size 6
- V10 1P6P 11C20 — ring size 6
- F3 V10 1P6P 1A20 — ring size 6
Series overview: V10 Vane Pump. Full family: V10 · V20 · V200 · VTM42 Series. Not sure about the fit? Contact us with the full nameplate code and we will confirm before you order.
Selection & ordering
Send us the full model code from your nameplate (or your machine model) and we will confirm this pump matches before you order.
