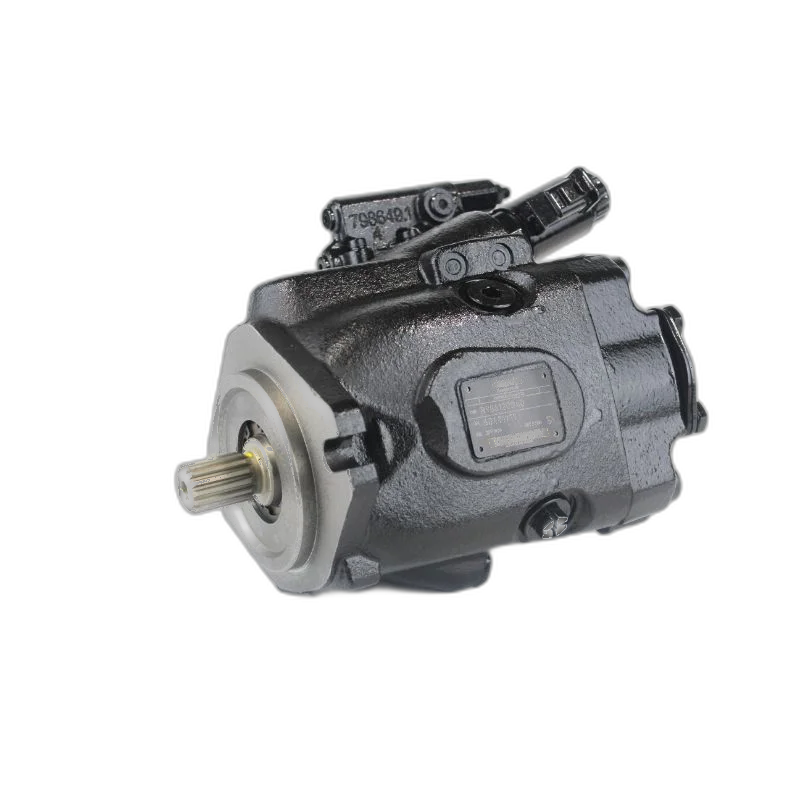

New Aftermarket A10VO72DR/53R-VSD12K15 Axial Piston Pump

Product overview

New aftermarket A10VO axial piston variable pump, Series 53, swashplate design for open circuit. Complete model code: A10VO72DR/53R-VSD12K15. Size NG72, nominal displacement 72 cm³/rev. Nominal pressure 250 bar, maximum pressure 315 bar. Direction of rotation R (clockwise, viewed on the drive shaft). Quality checked before shipping. Contact us to confirm exact configuration and availability before ordering.

Control: DR pressure controller

The pressure controller limits the maximum pressure at the pump outlet within the control range of the variable pump. The variable pump only supplies as much hydraulic fluid as is required by the consumers. If the working pressure exceeds the pressure command value at the pressure valve, the pump will regulate to a smaller displacement to reduce the control differential.

• Basic position in depressurized state: Vg max.
• Setting range for pressure control: 35 to 250 bar — standard is 250 bar.
• Hysteresis: maximum 4 bar. Pilot fluid consumption: maximum approx. 3 l/min.

Other control options on this size

This 72 cm³ Series 53 pump is also available with other controls:

• A10VO72DRS/53R-VQD12N00 — DRS pressure and flow controller (load-sensing, with flushing)
• A10VO72ED72/53R-VWC12K52P-SO262 — ED72 electrohydraulic pressure control, negative (24 V)
• A10VO72LA8DS/53R-VSD12N00-S — LA8DS pressure, flow and power controller (power limiter)
• A10VO72LA9DS/53R-VSD46N00-S — LA9DS pressure, flow and power controller (power limiter)

Ordering

Send us the complete model code from the nameplate of your existing pump, or the machine model — we will confirm the correct size, control and configuration before you order.
