Model code — A10VSO28DFE1/31R-PKC62N00
Decoded against the official ordering code of this series (series 31 uses 13 positions including the version position). This unit reads as follows:
| Field | Value | Meaning |
|---|---|---|
| 01 Version | — | omitted |
| Axial piston unit | A10VO | A10VO swashplate variable pump (open circuit) |
| Size (NG) | 28 | nominal size NG28 |
| Control | DFE1 | electro-hydraulic closed-loop control |
| Series | 31 | series 31 (heavy duty 280 / 350 bar) |
| Rotation | R | clockwise, viewed from the shaft end |
| Seals | P | NBR body with FKM shaft seal (older / US version) |
| Drive shaft | K | straight key, ISO 3019-1 |
| Mounting flange | C | SAE 2-hole (standard) |
| Work ports | 62 | flange seat with UNC / ASME B1.1 threads |
| Through drive | N00 | no through drive |
| Solenoid connector | — | omitted — none |
Product overview

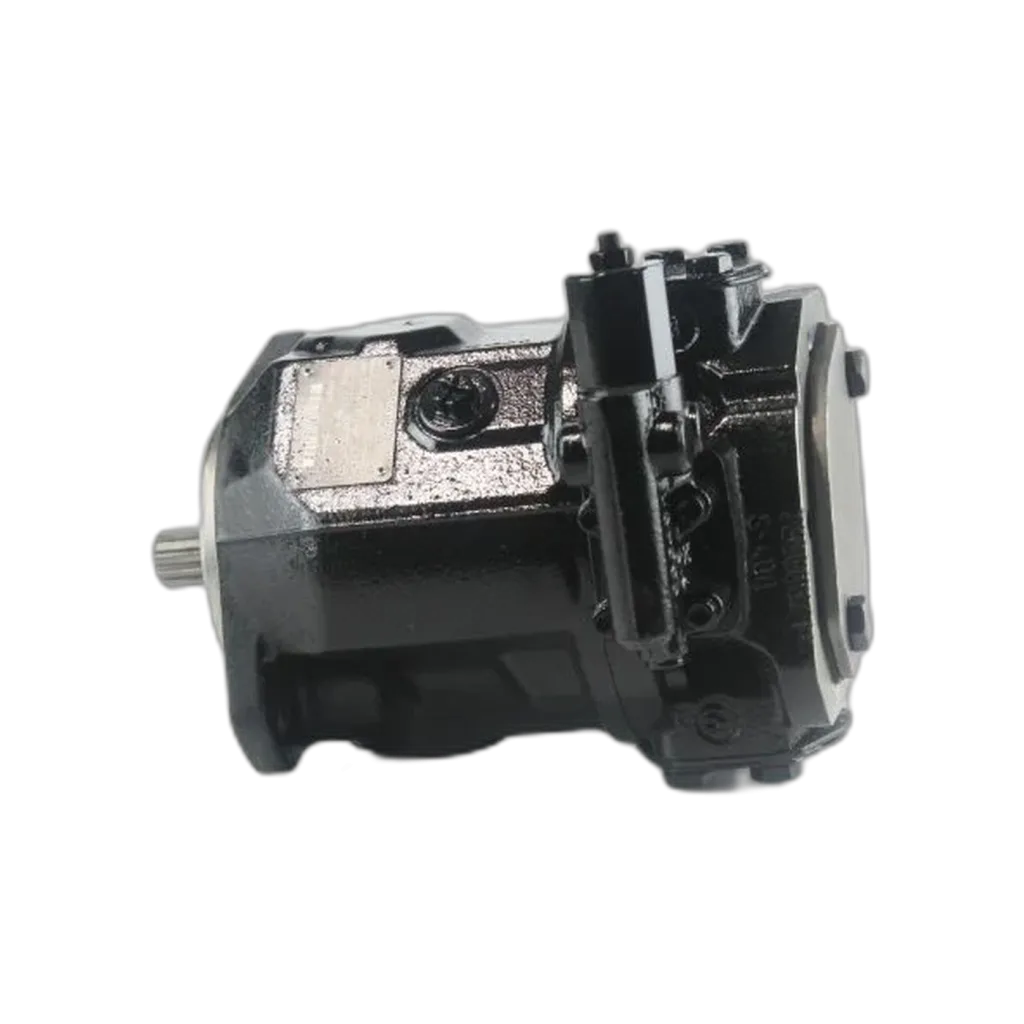

New aftermarket A10VSO axial piston variable pump, Series 31, swashplate design for open circuit. Complete model code: A10VSO28DFE1/31R-PKC62N00. Size NG28, nominal displacement 28 cm³/rev. Nominal pressure 280 bar, maximum pressure 350 bar. Direction of rotation R (clockwise, viewed on the drive shaft). Quality checked before shipping. Contact us to confirm exact configuration and availability before ordering.
Control: DFE1 electronic pressure and flow control
The pressure and output flow of the pump are controlled electronically by means of a proportional valve. The output flow is controlled by varying the swivel angle of the pump. Variations in pump speed — e.g. with a diesel engine drive — are not taken into consideration. The pump pressure and position are fed back via a pressure sensor and an inductive positional transducer to the amplifier card which is necessary to the control. The DFE1 model pump is suitable for control applications in conjunction with the analogue amplifier card VT 5041.
- Controller data: hysteresis < 1% of Vg max; repeatability < 1%; pilot oil consumption approx. 2.5 l/min max.
- The amplifier card and the pressure sensor are supplied separately.
- For safety reasons an additional pressure relief valve should be mounted near to the pump pressure control system, to ensure that the maximum permissible operating pressure is not exceeded.
Other control options on this size
This 28 cm³ Series 31 pump is also available with other controls:
- A10VSO28DR/31R-PPA12N00 — DR pressure controller
- A10VSO28DRG/31R-PPA12N00 — DRG pressure controller, remotely controlled
- A10VSO28DFR/31R-PPA12N00 — DFR pressure flow controller
- A10VSO28DFR1/31R-PPA12N00 — DFR1 pressure flow controller
- A10VSO28DFLR/31R-PKC62N00 — DFLR pressure, flow and power controller
Ordering
Send us the complete model code from the nameplate of your existing pump, or the machine model — we will confirm the correct size, control and configuration before you order.
Series overview
All models in this series: A10VO Series 31. Parent range: A10VO Piston Pump.
Not sure about the fit? Contact us with the full nameplate code and we will confirm before you order.
