Model code — A10VSO100DG/31R-PPA12N00
Decoded against the official ordering code of this series (series 31 uses 13 positions including the version position). This unit reads as follows:
| Field | Value | Meaning |
|---|---|---|
| 01 Version | — | omitted |
| Axial piston unit | A10VO | A10VO swashplate variable pump (open circuit) |
| Size (NG) | 100 | nominal size NG100 |
| Control | DG | pressure control (older designation) |
| Series | 31 | series 31 (heavy duty 280 / 350 bar) |
| Rotation | R | clockwise, viewed from the shaft end |
| Seals | P | NBR body with FKM shaft seal (older / US version) |
| Drive shaft | P | straight key, DIN 6885 (metric / US version) |
| Mounting flange | A | ISO 3019-2 metric 2-hole |
| Work ports | 12 | metric flange seat, fixed metric threads (DIN 13) |
| Through drive | N00 | no through drive |
| Solenoid connector | — | omitted — none |
Product overview

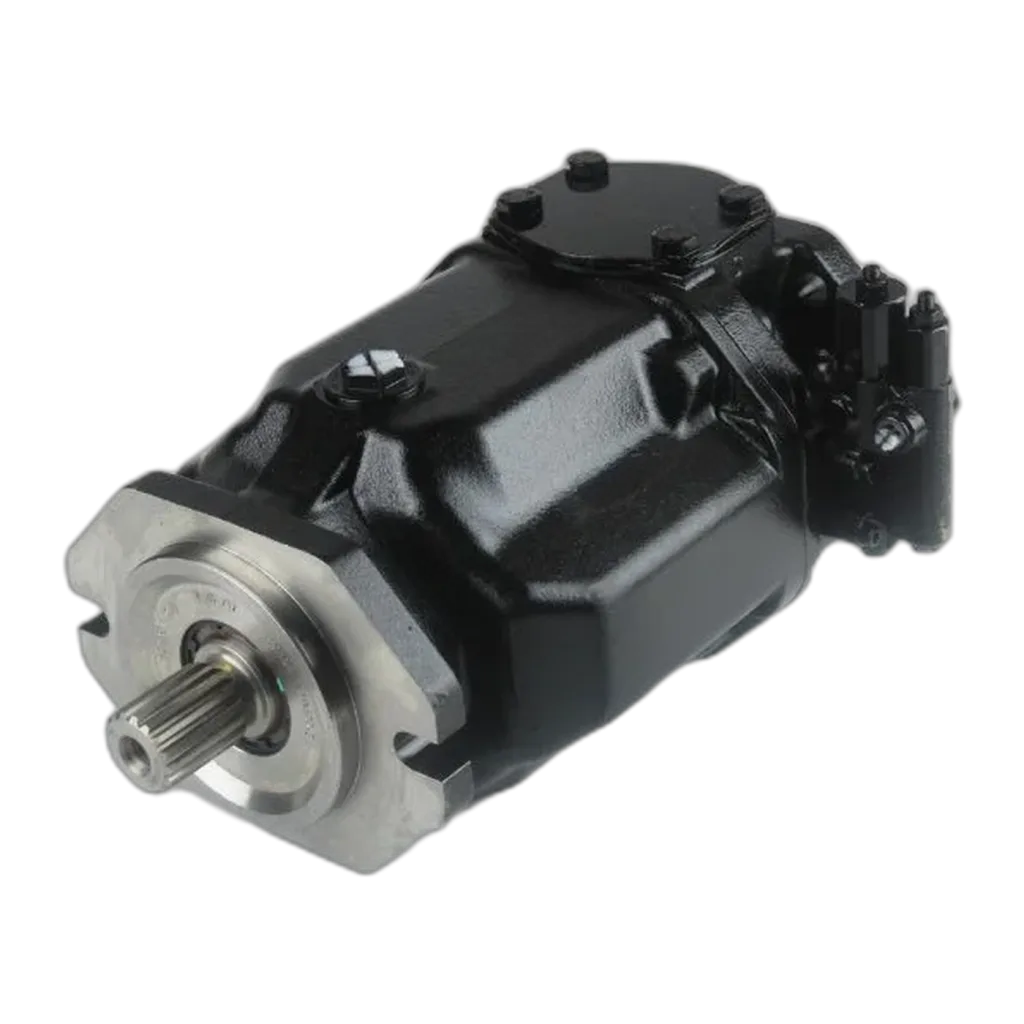

New aftermarket A10VSO axial piston variable pump, Series 31, swashplate design for open circuit. Complete model code: A10VSO100DG/31R-PPA12N00. Size NG100, nominal displacement 100 cm³/rev. Nominal pressure 280 bar, maximum pressure 350 bar. Direction of rotation R (clockwise, viewed on the drive shaft). Quality checked before shipping. Contact us to confirm exact configuration and availability before ordering.
Control: DG two-point control, direct operated
The variable pump can be set to a minimum swivel angle by connecting an external switching pressure to port X. This will supply control fluid directly to the stroking piston; a minimum control pressure of pst ≥ 50 bar is required. The variable pump can only be switched between Vg max and Vg min. The required switching pressure at port X is directly dependent on the actual working pressure pB in port B. The maximum permissible switching pressure is 280 bar.
- Switching pressure pst in X = 0 bar → Vg max.
- Switching pressure pst in X ≥ 50 bar → Vg min.
Other control options on this size
This 100 cm³ Series 31 pump is also available with other controls:
- A10VSO100DR/31R-PPA12N00 — DR pressure controller
- A10VSO100DRG/31R-PKC62N00 — DRG pressure controller, remotely controlled
- A10VSO100DFR/31R-PKC62N00 — DFR pressure flow controller
- A10VSO100DFR1/31R-PKC62N00 — DFR1 pressure flow controller
- A10VSO100DFLR/31R-PKC62N00 — DFLR pressure, flow and power controller
Ordering
Send us the complete model code from the nameplate of your existing pump, or the machine model — we will confirm the correct size, control and configuration before you order.
Series overview
All models in this series: A10VO Series 31. Parent range: A10VO Piston Pump.
Not sure about the fit? Contact us with the full nameplate code and we will confirm before you order.
